MX Press Freewheel Cam Clutch Bearing
- Phone: 18019694558
- Email: sales@backstopclutch.com
Features:
When mounting the clutch on a shaft, apply pressure to the clutch inner race end, but never to the outer race.
Proper selection of the Cam Clutch provides accurate indexing performance. A braking device and a backstopping device may also be required for more accurate performance.
The tolerance of the hub bore should be H6 or H7.

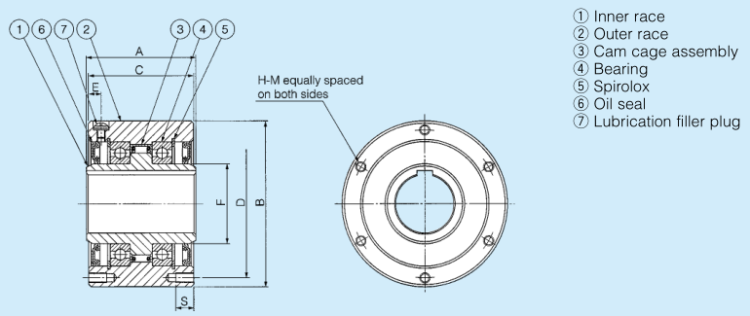

Dimensions and Capacities:
Model | Torque | Max.Indexing | Bore Size | A | B | C | PCD | E | F | S | H-MNo.ofTapped Holes | Lubrication | InertiaInner Race (kg·m2) | Drag | Oil | Weight | |
Dia. | Keyway | ||||||||||||||||
MX22 | 78.4 | 1200 | 22 | 6 × 2.8 | 80 | 95 | 77 | 80 | 12 | 35 | 16 | 4XM8XP1.25 | M6XP1.0 | 0.00015 | 0.47 | 80 | 3.3 |
MX35 | 235 | 1200 | 35 | 10 ×33 | 90 | 125 | 87 | 110 | 12 | 50 | 16 | 4XM8XP1.25 | M6XP1.0 | 0.000625 | 1.36 | 110 | 6.4 |
MX50 | 441 | 1200 | 50 | 14 × 3.8 | 100 | 155 | 97 | 140 | 14 | 70 | 16 | 6XM8XP1.25 | M8XP1.25 | 0.00275 | 2.68 | 190 | 10.6 |
MX70 | 784 | 1200 | 70 | 20 ×4.9 | 127 | 200 | 124 | 180 | 15 | 100 | 20 | 6XM8XP1.25 | M8XP1.25 | 0.0130 | 5.15 | 340 | 21.3 |

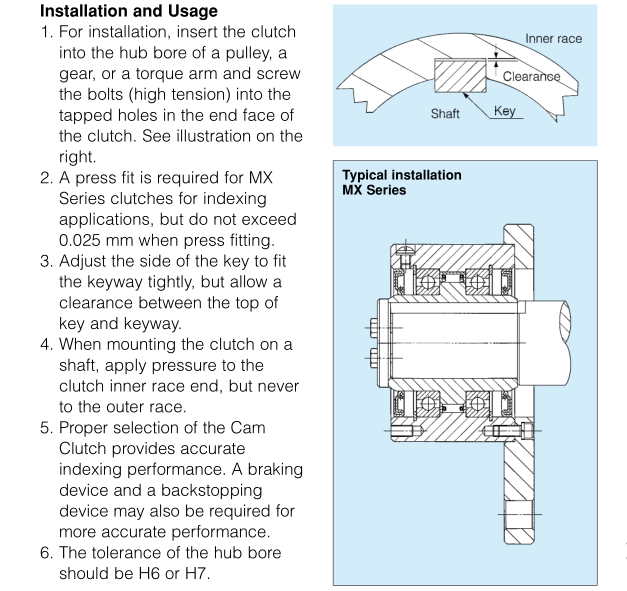

Mounting and Coupling:

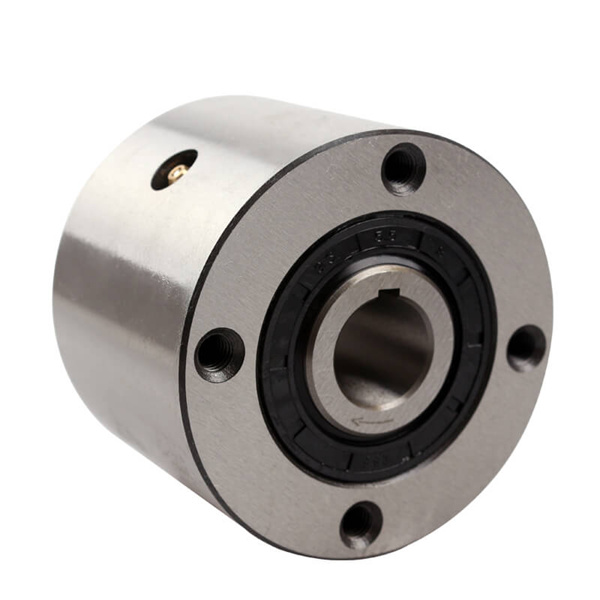

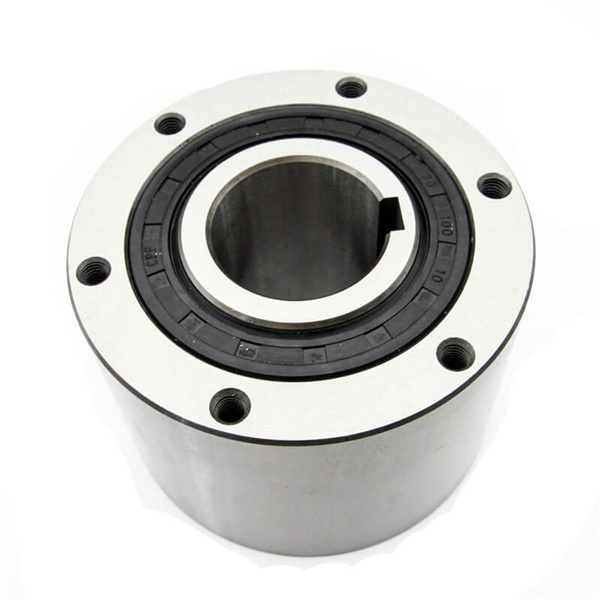

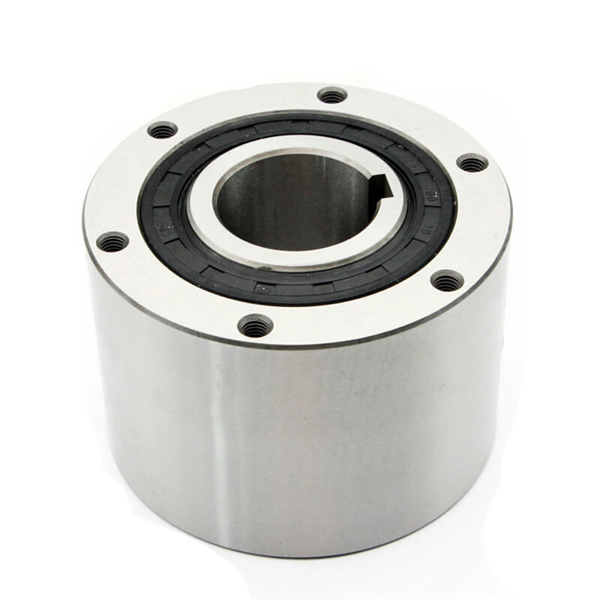

Product display:
